Triproton Good Quality IP68 Waterproof 1500V 20A Solar Array Junction Box with PV Connector
Product Description
| Product name | Solar PV Junction Box |
Rated current | 16A/20A/25A |
| Rated Voltage | 1500V DC |
| Test voltage | 8kV |
| Contact resistance | <0.5mΩ (under 25℃) |
| Waterproof protection | IP68 |
| Overvoltage degree | CATIII/2 |
| Safety class | Class Ⅱ |
| Application class | Class A |
| Working temperature | -40°C~+85°C |
| Tension of cable and terminal | ≥350N |
| Wire Size Range | 4mm2 solar cable |
| Bypass diode requirements | IR≤200μA (25℃); VRRM≥45V; VF≤0.6 (25℃) |
| Insulation Material | PPO |
The features of solar junction box with pv connector:
Low forward voltage
High current capability
High forward surge capability
Low power losses,High efficiency
Guarding for over voltage protection

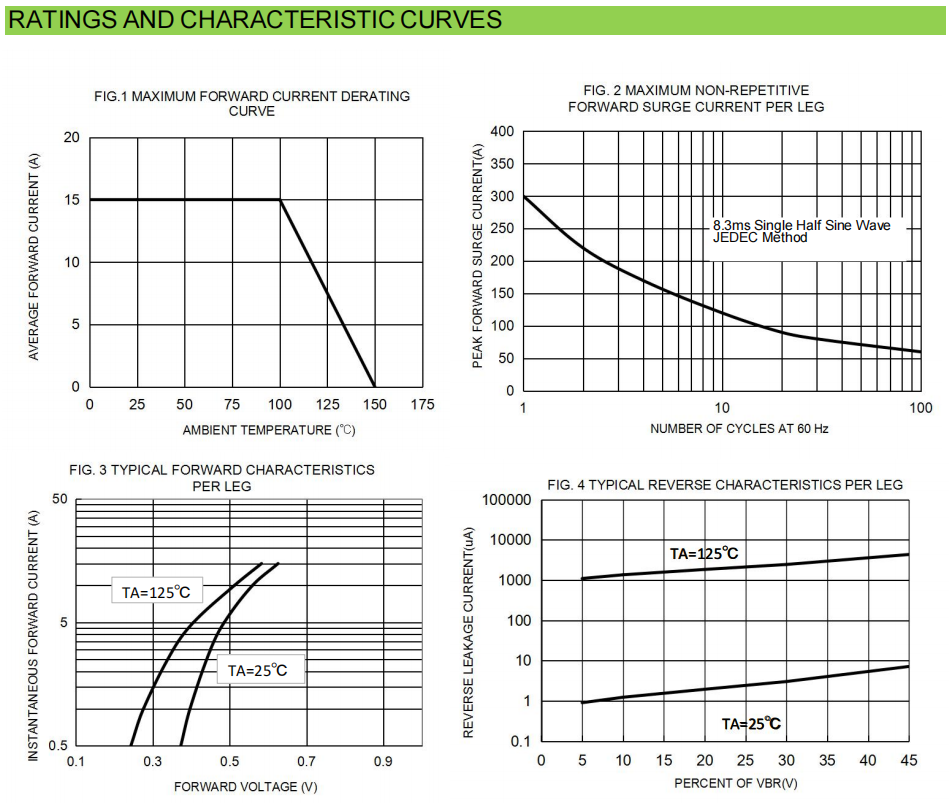

Technical Data

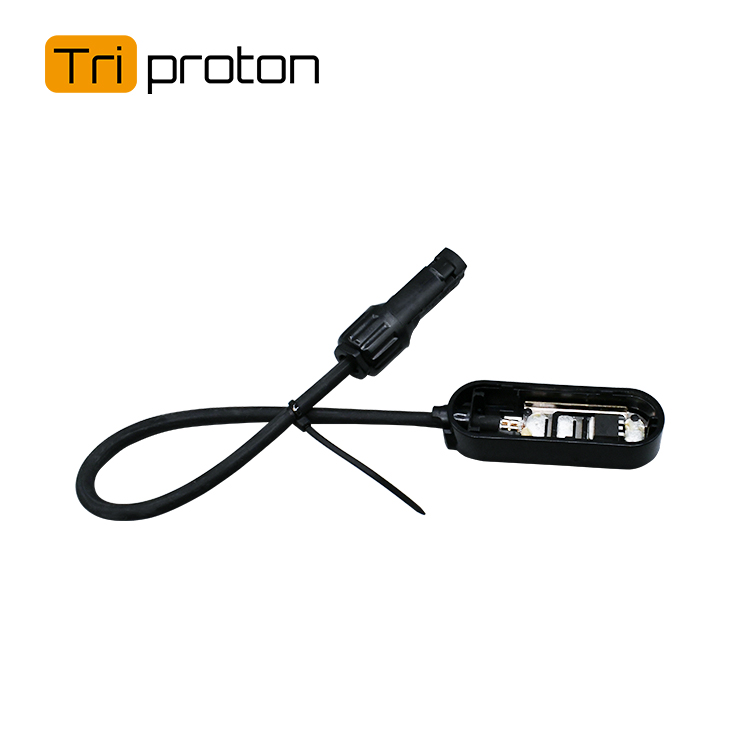

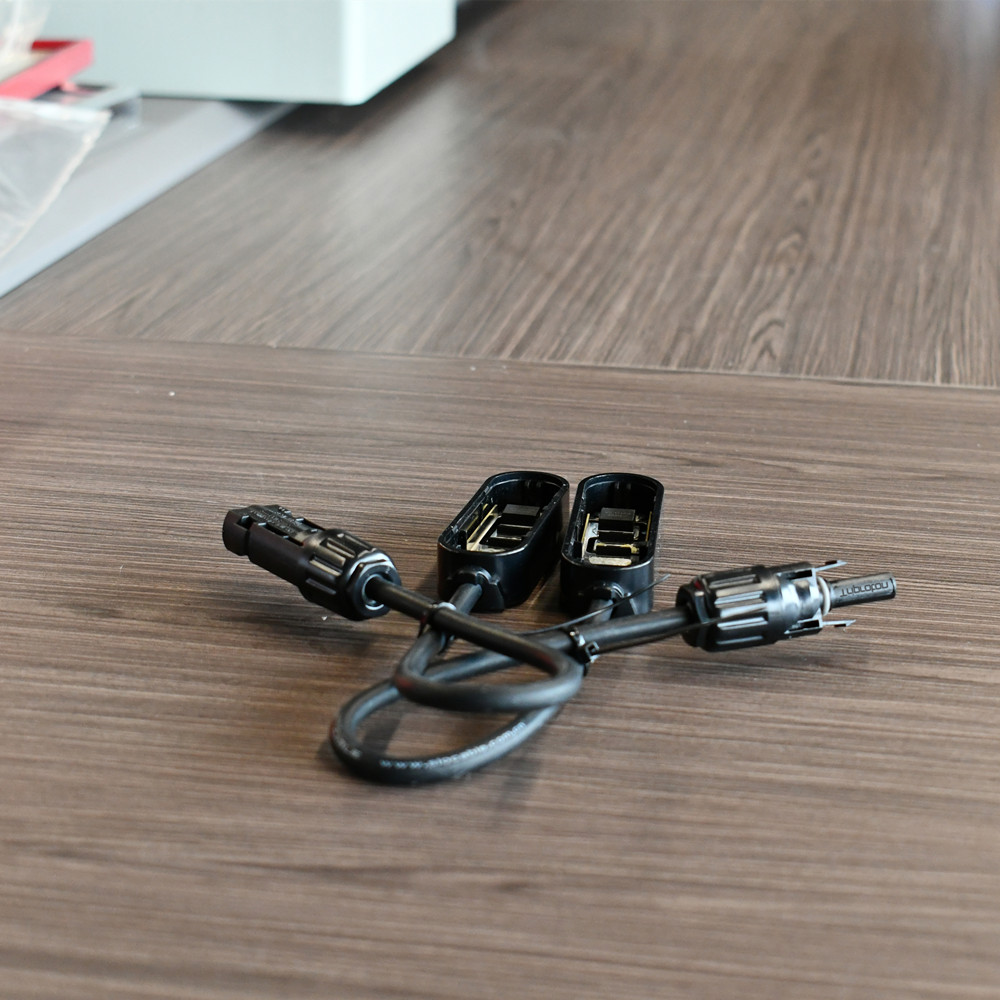

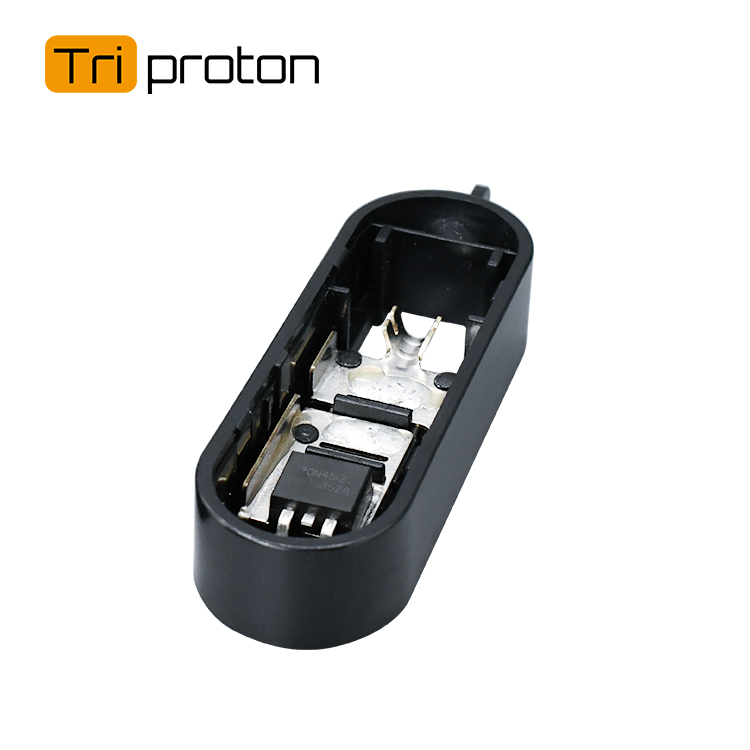

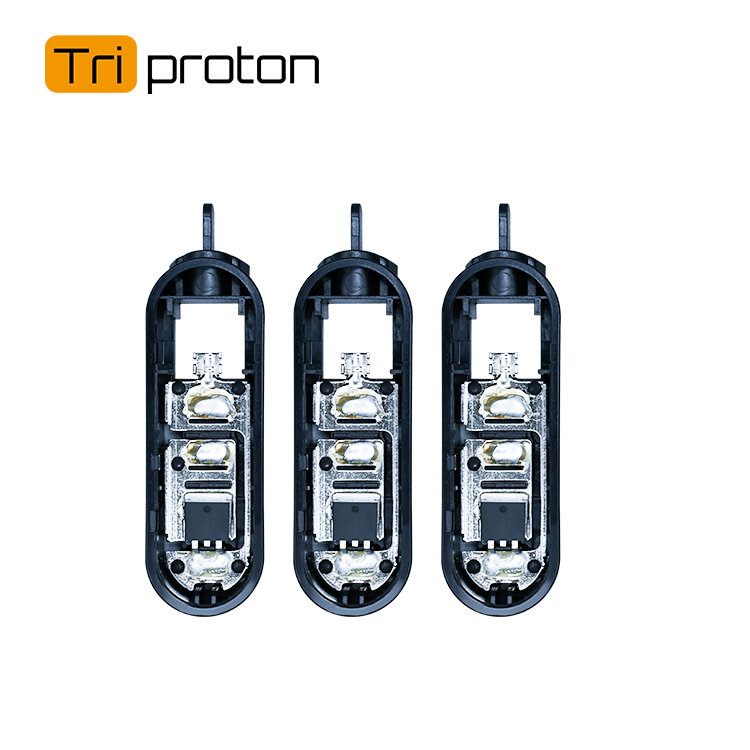

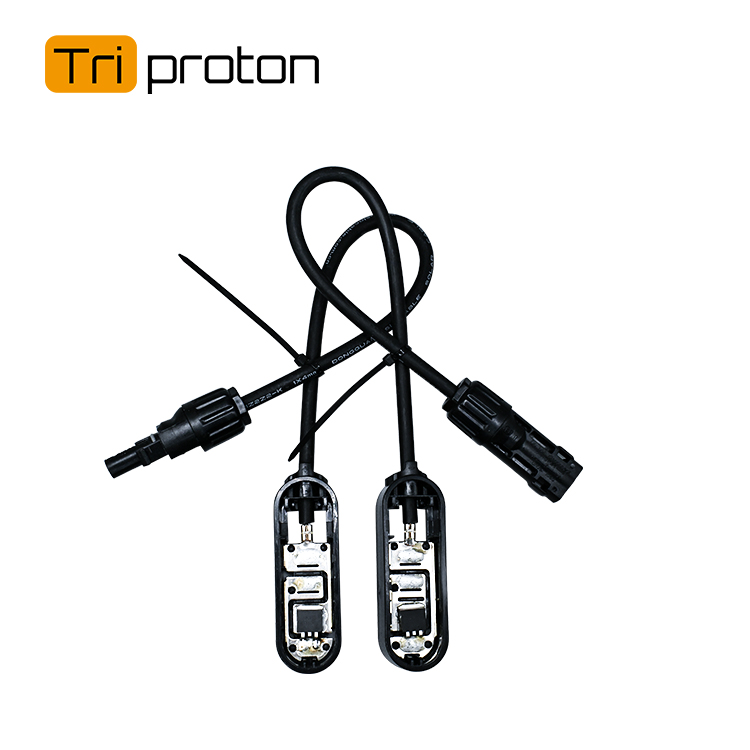

Detailed Images

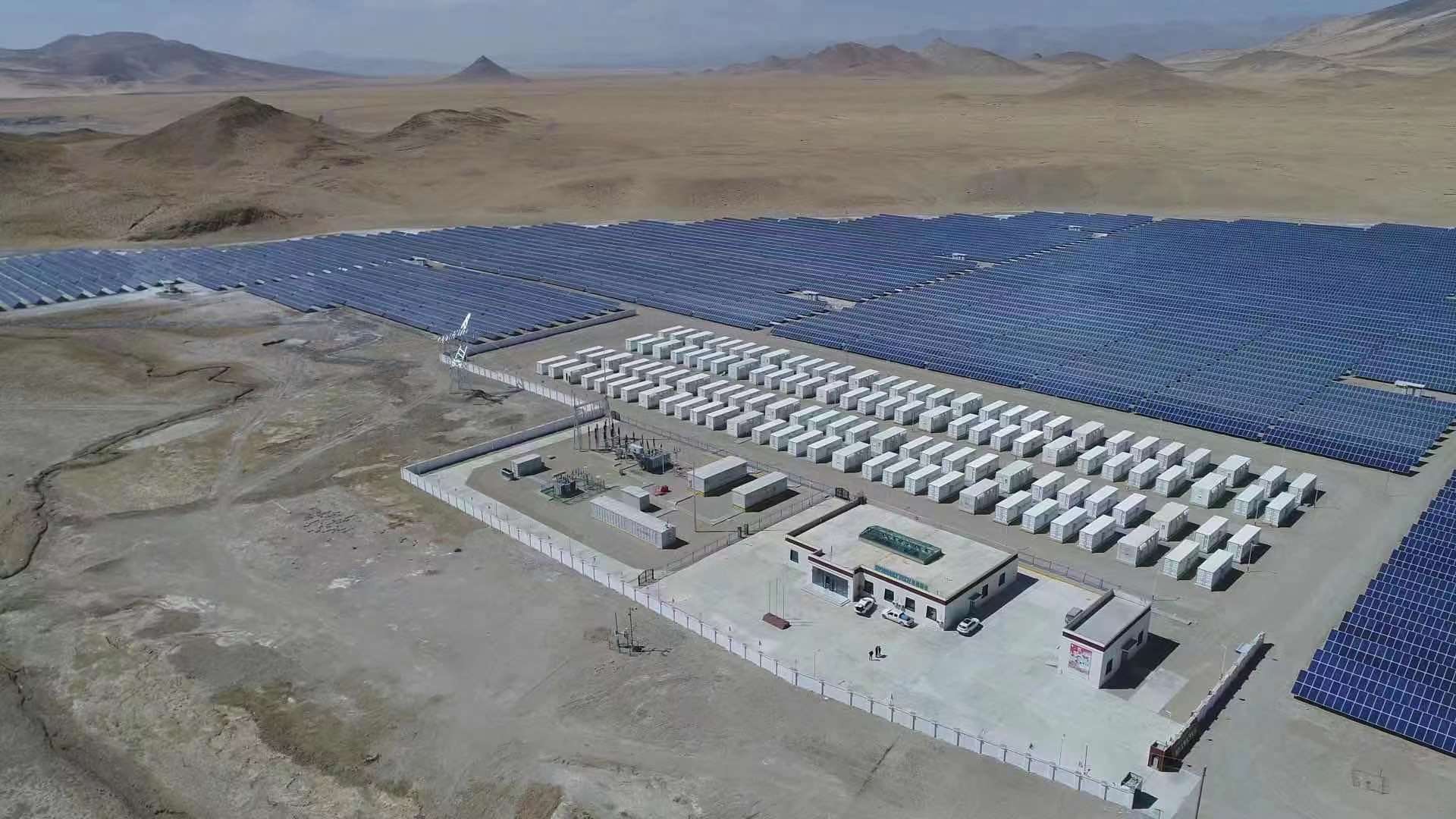

Application
We also have solar cable, PV connector, branch connector, fuse holders, pv tools, etc.
