Product Description
Advantages of Solar DC Connector
Simple on-site processing.
Mating safety provided by keyed housings.
Mutiple plugging and unplugging cycles.
Accomodates PV cable with different insulation diamaters.
High voltage and high current carrying capacity.
TUV and CE approved.
Crimp connection.
IP68 strongly waterproof.
Technical Data
Technical Data
Insulation material: | PPO | Rated current: | 50A(2.5mm2~6mm2) 70A(10mm2) |
Test voltage: | 8000V(50Hz,1min) | Rated voltage: | 1000V DC/1500V DC |
| Contact resistance: | <0.35mΩ | Degree of protection: | IP68 |
| Overvoltage category: | CATIII/2 | Flame class: | UL94-V0 |
Safety class: | II | Contact material: | Copper,tin plated |
| Temperature range: | -40℃ ~ +85℃ | Suitable cable: | 2.5/4/6/10mm2, 14/12/10/8AWG |
| Connecting System: | Crimp connection | Insertion force/ withdrawal force: | ≤50N / ≥50N |

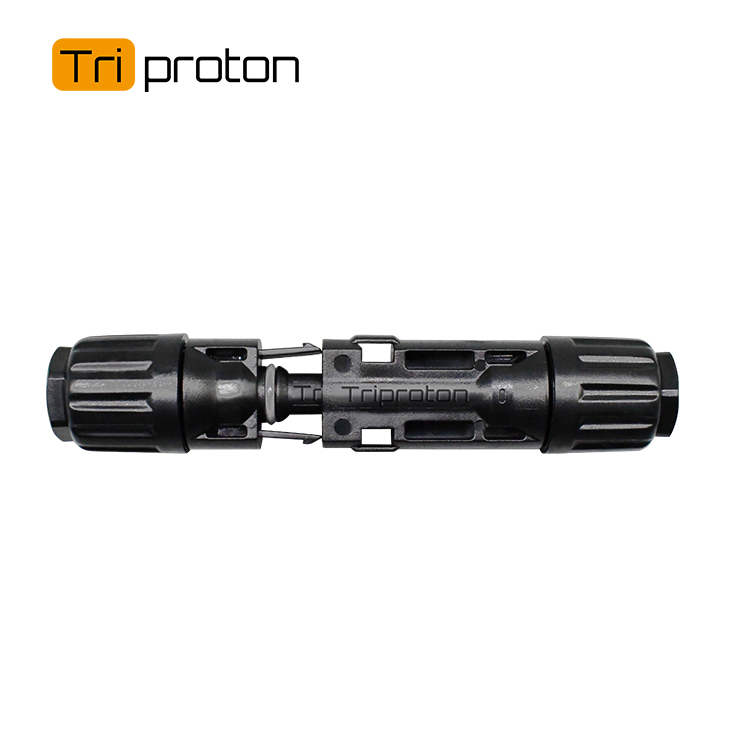

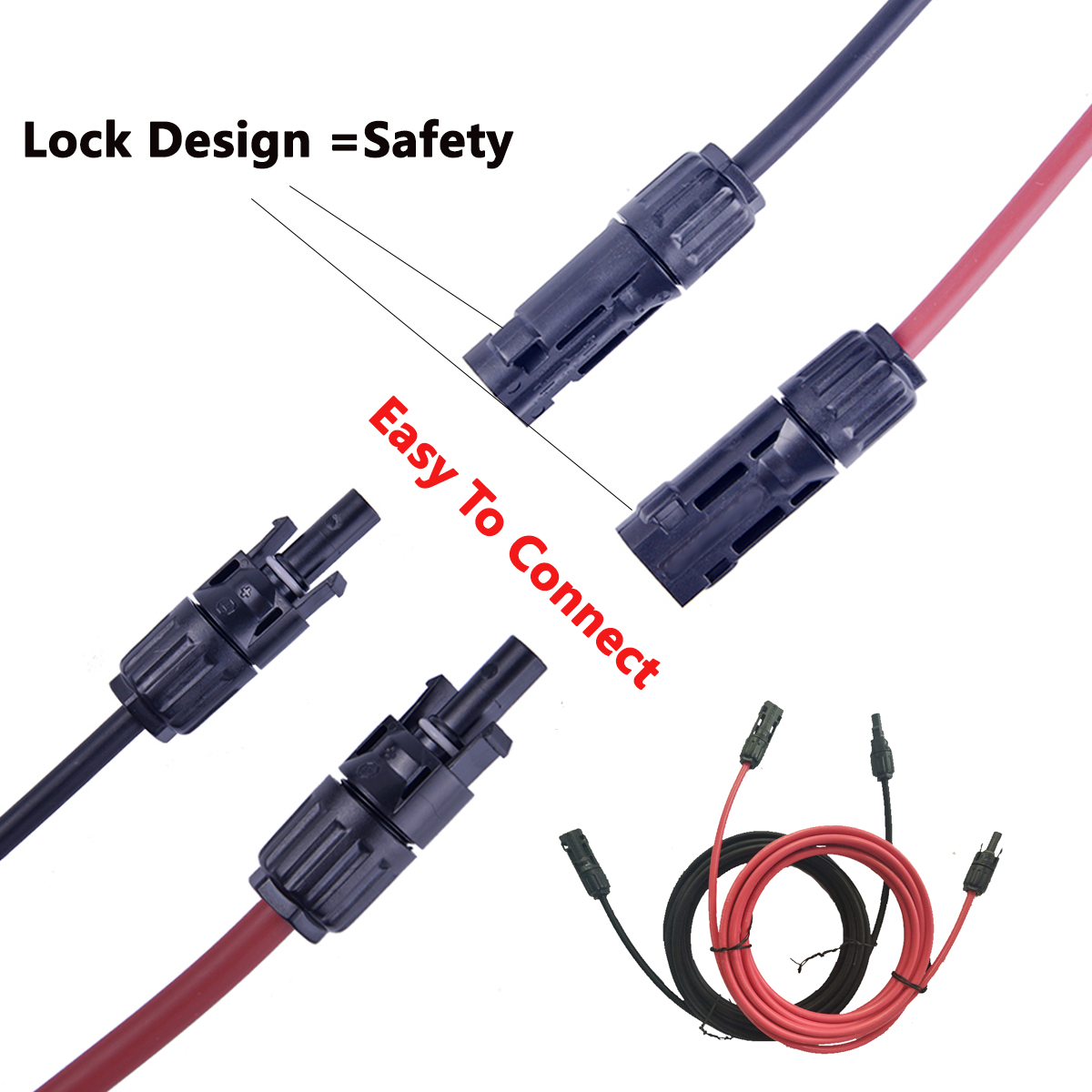

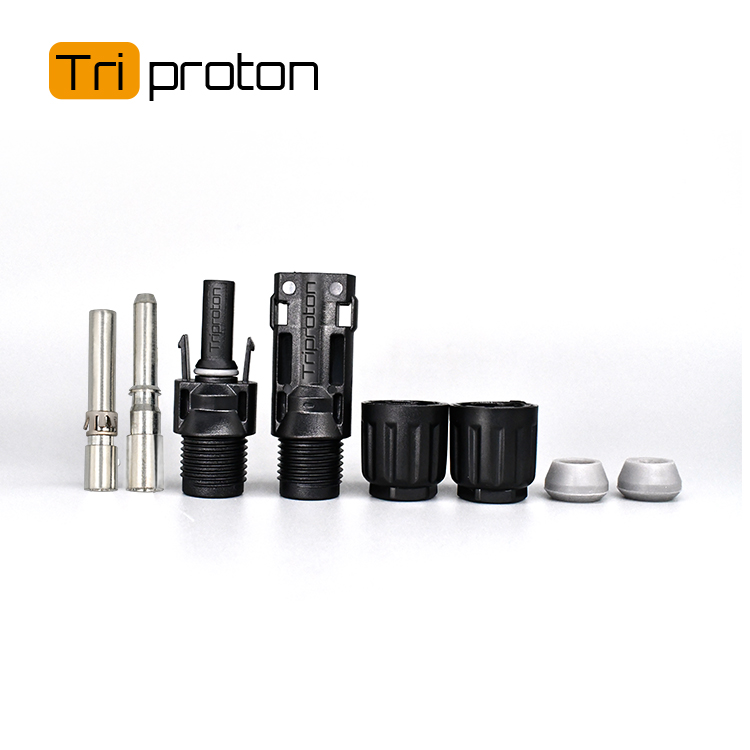

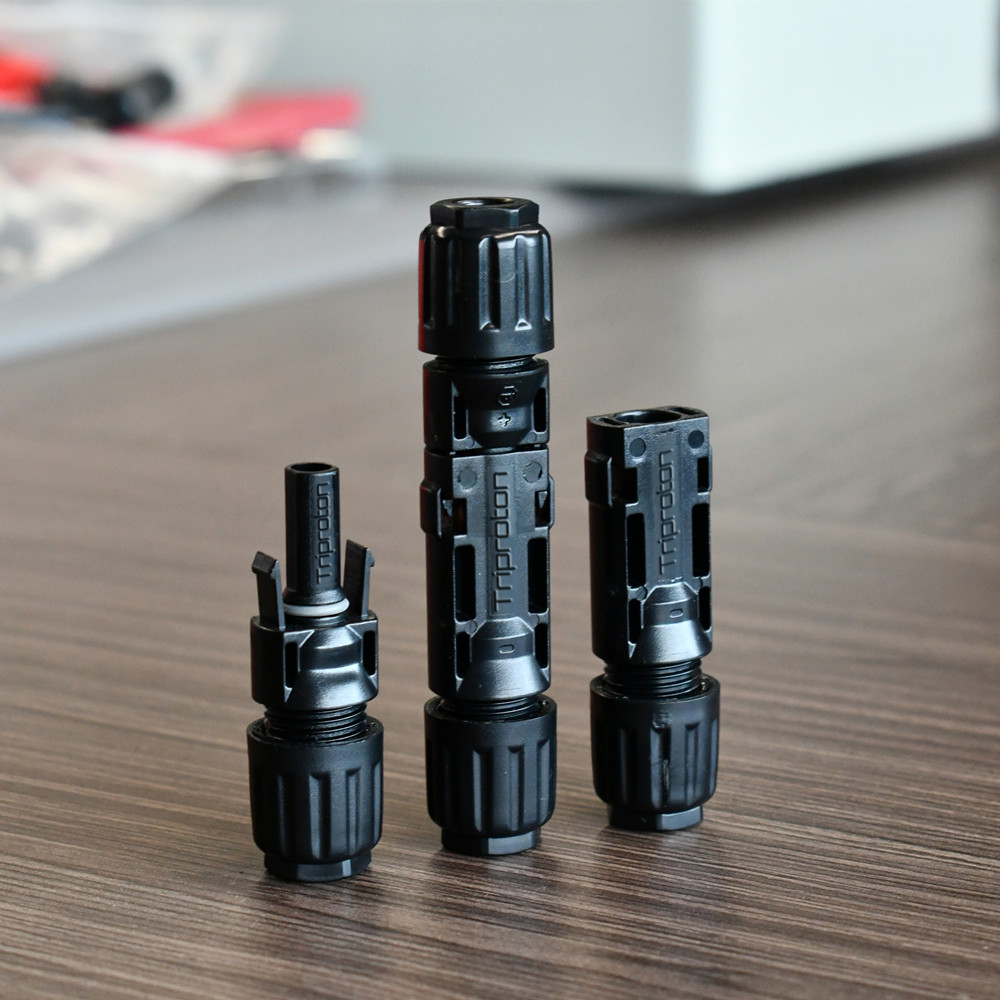

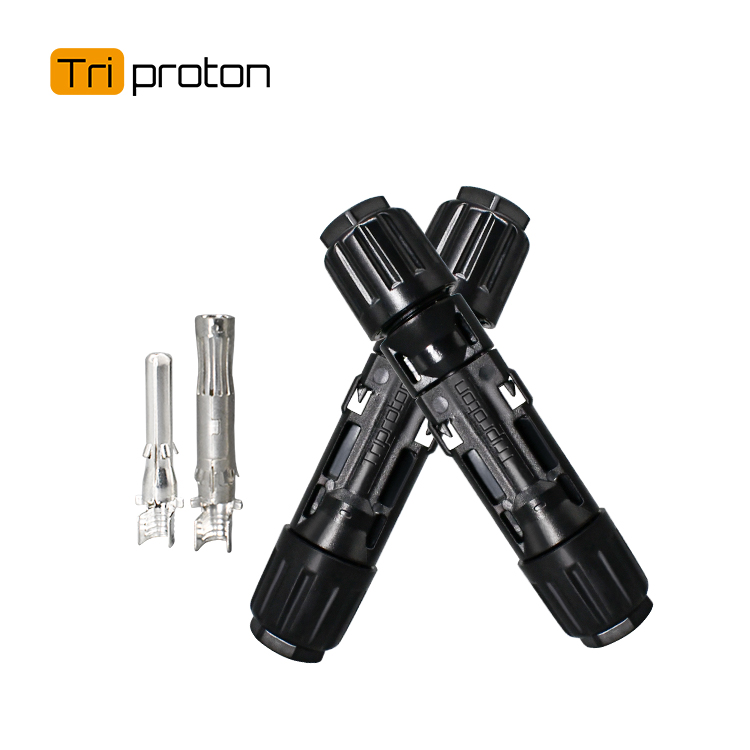

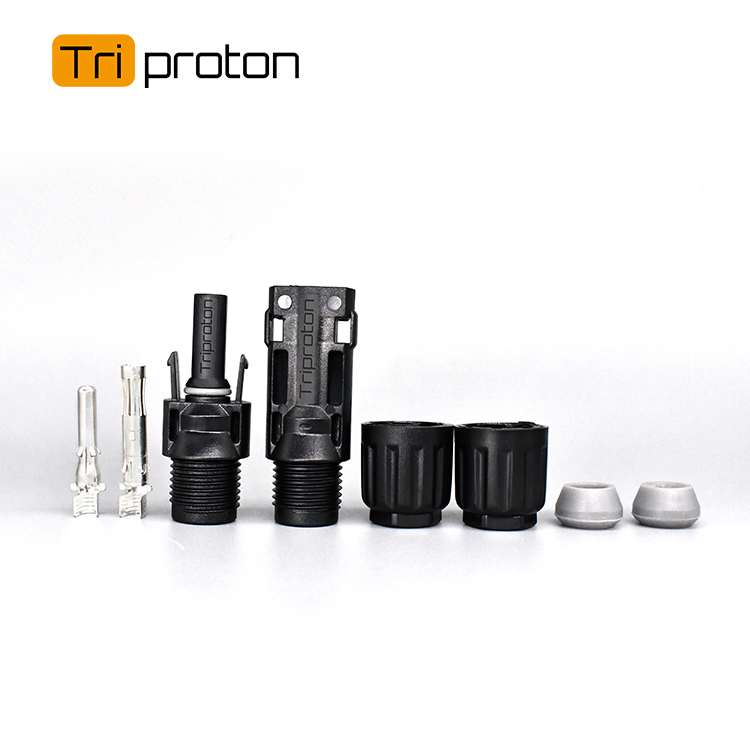

Detailed Images
Detailed Images

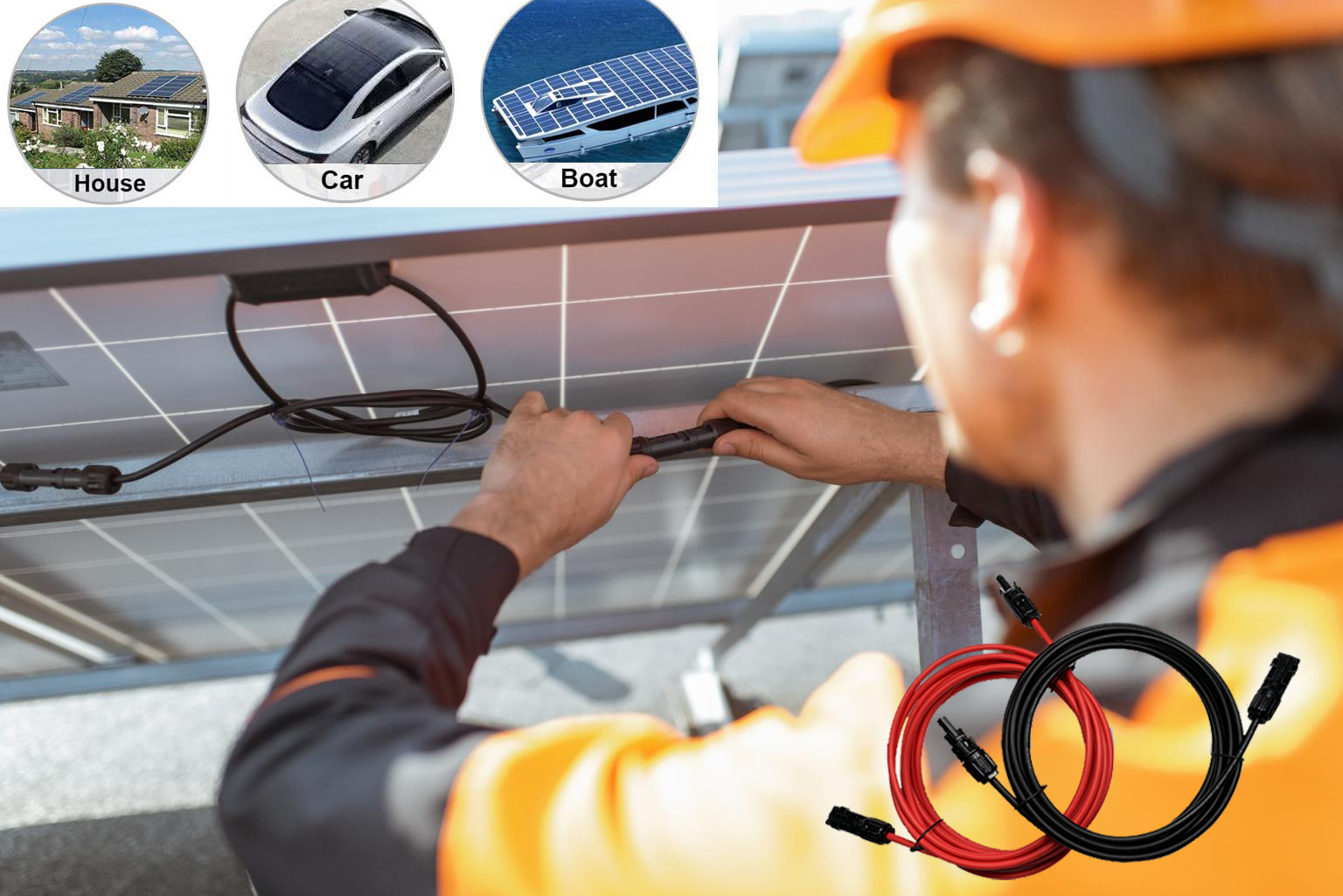

Application
