airdac cable and ACSR conductor with high voltage overhead conductor from China manufacture

Price:￥12.80/Piece
Min quantity:10Piece
Quantity:10000Piece

Buy





Ⅰ Applications

The product is widely used in the overhead power distribution system of you country ,and it is one of the main products for forming electrified wire network.

Ⅱ Standards

We could produce the cable according to many standards:ASTM  ,BS ,IEC,DIN,

JIS and so on,

We will do our best to meet your requirements.

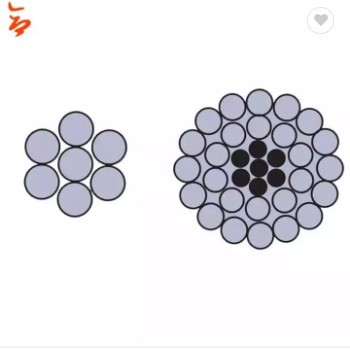

Ⅲ Type

1.  AAC : All Aluminum Conductor

2.  ACSR:Aluminum Conductor Steel Reinforced

3.  AAAC:All Alloy Aluminum Conductor

4.  AACSR: Aluminum Alloy Conductor Steel Reinforced

5.  ACAR: Aluminum Conductor Alloy Reinforced

6. ACSR/AW:Aluminum Conductor Aluminum Clad Steel Reinforced

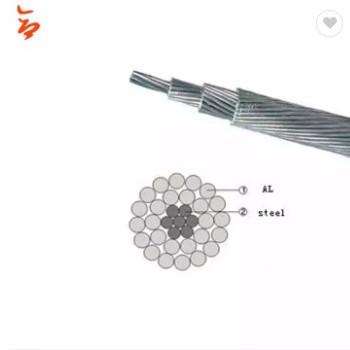

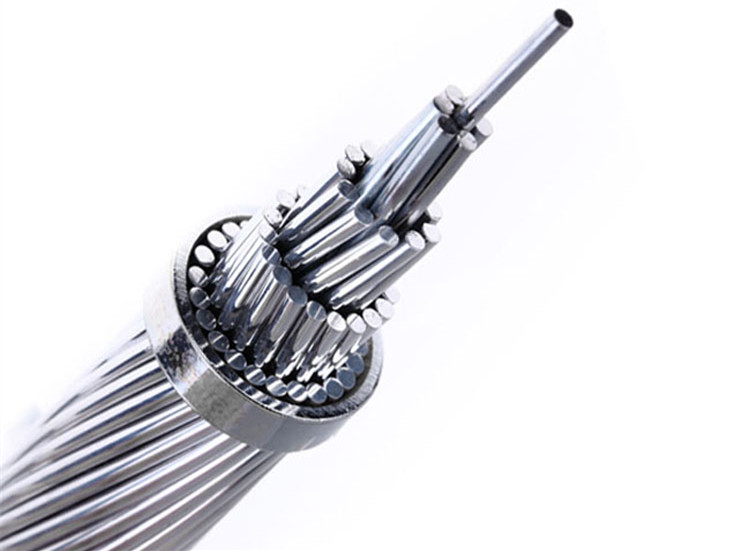

 ACSR:Aluminum Conductor Steel Reinforced ASTM B 232

Code name	Cmils or AWG	Stranding NO.		Wire Diameter mm		Overall Diameter	Breaking Load	Weight
		Al	St	Al	St	mm	kN	kg/km
Turkey	6	6	1	1.68	1.68	5.04	5.4	53.8
Swan	4	6	1	2.12	2.12	6.36	8.4	85.7
Sprrow	2	6	1	2.67	2.67	8.01	12.9	136.0
Raven	1/0	6	1	3.37	3.37	10.11	19.8	216.6
Quail	2/0	6	1	3.78	3.78	11.34	23.7	272.6
Pigeon	3/0	6	1	4.25	4.25	12.75	29.9	344.6
Penguin	4/0	6	1	4.77	4.77	14.31	37.7	434.0







Triplex Service Drop



Triplex AAAC cable

Code Word	AWG or Kcmil	Neutral  AAAC	Phase AAC
Minex	2*6 AWG+1*30.58	7/1.68	1/4.11
Hippa	2*6 AWG+1*30.58	7/1.68	7/1.56
Prawn	2*4 AWG+1*48.69	7/2.12	1/5.19
Bamacle	2*4 AWG+1*48.69	7/2.12	7/1.96
Shrimp	2*2 AWG+1*77.47	7/2.67	7/2.47
Gammarus	2*1/0 AWG+1*123.3	7/3.37	7/3.12
Leda	2*1/0 AWG+1*123.3	7/3.37	19/1.89



Triplex ACSR cable

Code Word	AWG or Kcmil	Neutral  ACSR	Phase AAC
Paludina	2*6 AWG+1*6AWG	6+1 /1.68	1/4.11
Voluta	2*6 AWG+1*6AWG	6+1 /1.68	7/1.56
Whelk	2*4 AWG+1*4AWG	6+1 /2.12	1/5.19
Periwinkle	2*4 AWG+1*4AWG	6+1 /2.12	7/1.96
Conch	2*2 AWG+1*2AWG	6+1 /2.67	7/2.47
Neritina	2*1/0 AWG+1*1/0 AWG	6+1 /3.37	7/3.12
Cenia	2*1/0 AWG+1*1/0 AWG	6+1 /3.37	19/1.89
