Products Description

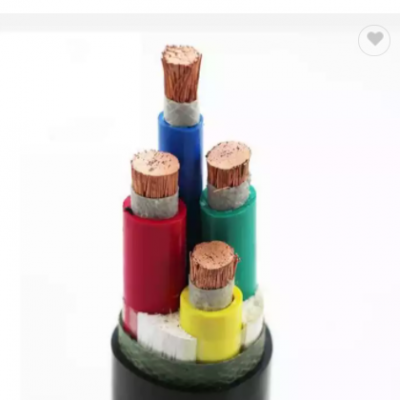

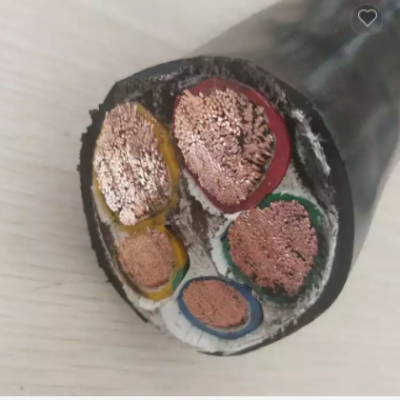

600/1000V Xlpe Insulation Electric Armored Cable Power Cable 2x1 4x1

Product Feature
Conductor: Aluminum or Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement.


Armoured Power Cable Parameter:

Part Number

Cross Section

Stranding

Approx Weight

Approx Overall Diameter

Gland Size

Single Cleat

Nom. Max. DC-resist conductor 20° C

Current rating laid direct

(mm²)

(mm)

KG/KM

(mm)

(mm)


(Ohm/km)

(Amp)

SWAPVC4X1.5

4 x 1.5

7/0.53

351

12.88

20s

0.5

12.1

32

SWAPVC4X2.5

4 x 2.5

7/0.67

429

14.43

20s

0.6

7.41

42

SWAPVC4X4.0

4 x 4.0

7/0.85

538

16.87

20

0.6

4.61

55

SWAPVC4X6.0

4 x 6.0

7/1.04

670

17.87

20

0.7

3.08

69

SWAPVC4X10

4 x 10

7/1.35

998

20.1

25

0.8

1.83

92

SWAPVC4X16

4 x 16

7/1.70

1,272

22.4

25

0.9

1.15

119

SWAPVC4X25

4 x 25

7/2.14

1,940

27

32

1

0.727

152

SWAPVC4X35

4 x 35

7/2.52

2,390

30.1

32

1.2

0.524

182

SWAPVC4X50

4 x 50

19/1.78

2,925

31.5

32

1.4

0.387

217

SWAPVC4X70

4 x 70

19/2.14

4,200

37.4

40

1.6

0.268

266

SWAPVC4X95

4 x 95

19/2.52

5,355

40.9

50s

1.8

0.193

319

SWAPVC4X120

4 x 120

37/2.03

6,925

46.6

50

2

0.153

363

SWAPVC4X150

4 x 150

37/2.25

8,200

50.2

50s

2

0.124

406

SWAPVC4X185

4 x 185

37/2.52

9,975

55.8

63s

TC9

0.0991

458

SWAPVC4X240

4 x 240

61/2.52

12,700

62.5

63

TC10

0.0754

529

SWAPVC4X300

4 x 300

61/2.85

15,275

67.4

75s

TC11

0.0601

592

SWAPVC4X400

4 x 400

61/3.20

19,875

77

75

TC12

0.047

667

Armoured Cable

If you want to more details, please don't hesitate to send the inquiry to us.
