Diesel Fuel Tank Level Sensor 4-20mA SS304 Deep Well Water Level Meter Oil Tank Level Sensor
2022-11-14 15:1512810
| Price | ￥88.00/Piece |
| Min quantity | 1Piece |
| Quantity | 10000000Piece |
Product Description
| Measuring range | 0~1m...20m |
| Measuring pressure | Gauge Pressure, Absolute Pressure |
| Output signal | 4~20mA,1~5V,0~5V,0~10V,RS485 |
| Power supply | 10~36Vdc (24Vdc) |
| Accuracy | 0.5%FS, 0.2%FS |
| Zero temperature drift | ±2%FS |
| Sensitivity temperature drift | ±2%FS |
| Overload capacity | 150%FS |
| Mechanical vibration | 20g(20-5000HZ) |
| Impact | 100g(11ms) |
| Long term stability | ±0.2%FS/year |
| Response time | ≤1ms( Up to 90%FS) |
Insulation | 100MΩ/250VDC |
Material | Junction box: low copper aluminum alloy Probe: Stainless steel Flange and cable: Stainless steel |
| Protection class | IP65 |
| Media compatibility | All kinds of materials compatible with 316L stainless steel |

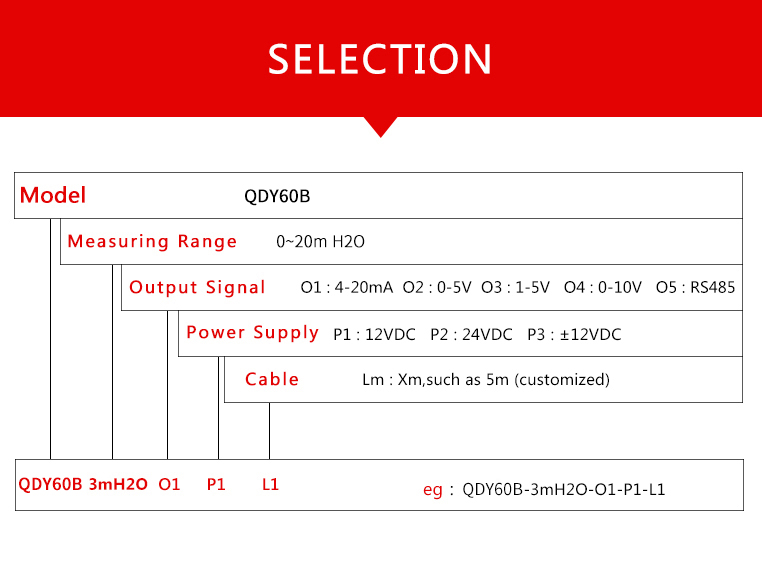

Product Selection

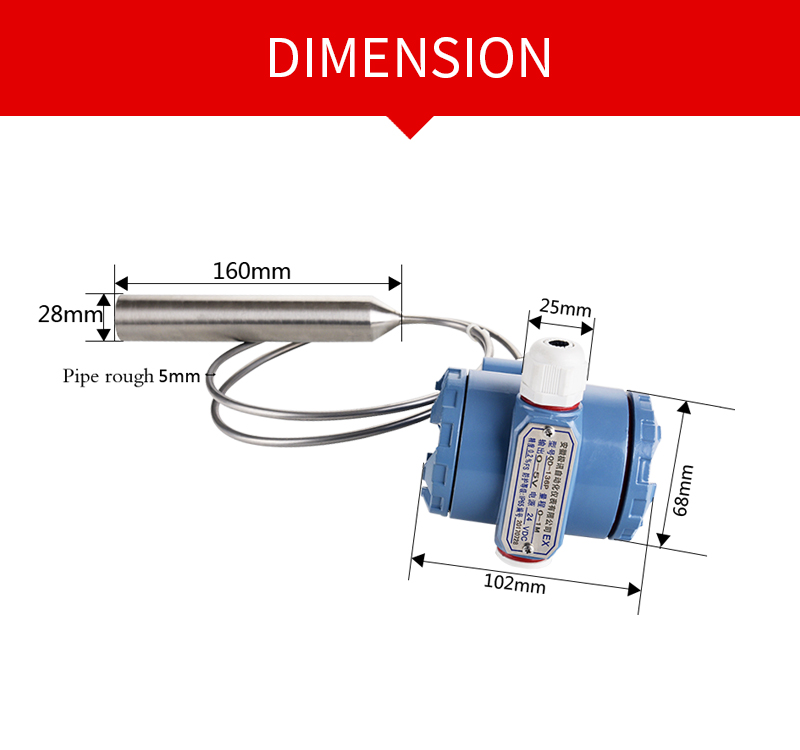

Product Dimension

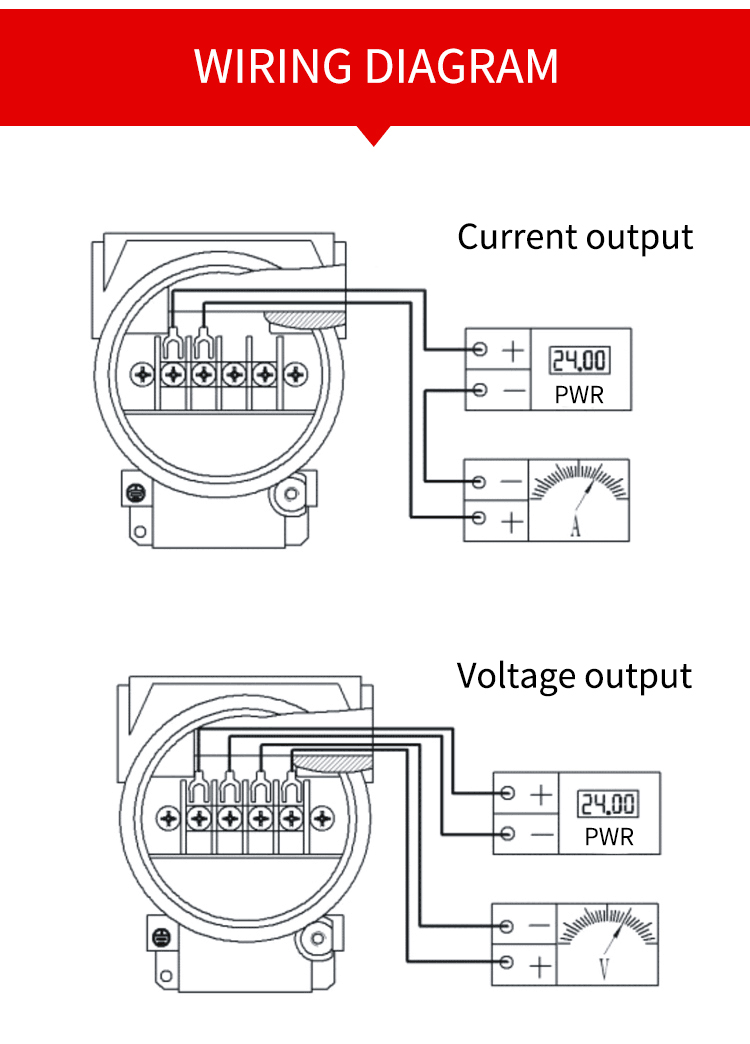

Wiring Diagram

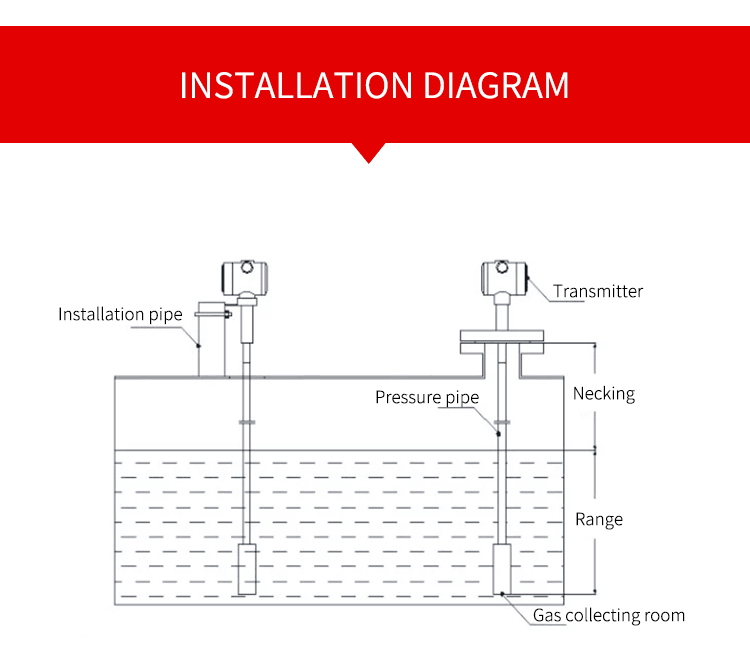

Application
