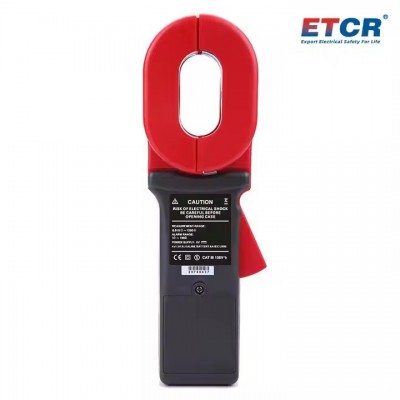

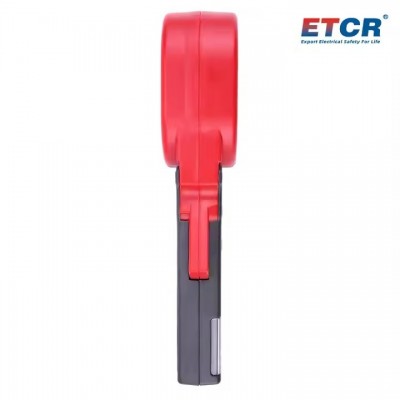

ETCR2000+ Clamp Ground Earth Resistance Tester Meter Digital Clamp Meter



Price: N/A
Min quantity: 10 Piece
Quantity: 20000 Piece
Deliver: In days
Area: China
Expiry: Long-term
Edit time: 2024-12-31 16:13
Hits: 371

Company integrity file
more>New Products
ETCR025K Specialized test Instruments for Electrical Energy and Power Grounding Lead Leakage Current ETCR040K Performance Stable Grounding Lead Leakage Current Sensor ETCR040K Specialized Test Equipment Split Core Leakage Current Sensor ETCR080K Multi-functional Measuring Equipment Split Core Leakage Current Sensor ETCR022KU Microampere Level Split Type Current Sensor For measuring AC leakage current ETCR145C Safe and Reliable Multifunction Flat Mouth Leakage Current Sensor
Detail





Technical Specification

Model

ETCR2000+

Resistance Range

0.010Ω~1200Ω

Current Range

-

Resistance Range & Accuracy

Range

Resolution

Accuracy

0.010Ω~0.099Ω

0.001Ω

±(1%rdg+0.01Ω)

0.10Ω~0.99Ω

0.01Ω

±(1%rdg+0.01Ω)

1.0Ω~49.9Ω

0.1Ω

±(1%rdg+0.1Ω)

50.0Ω~99.5Ω

0.5Ω

±(1.5%rdg+0.5Ω)

100Ω~199Ω

±(2%rdg+1Ω)

200Ω~395Ω

±(5%rdg+5Ω)

400Ω~590Ω

10Ω

±(10%rdg+10Ω)

600Ω~880Ω

20Ω

±(20%rdg+20Ω)

900Ω~1200Ω

30Ω

±(25%rdg+30Ω)

Current Range & Accuracy

0.00mA~9.95mA

0.05mA

±(2.5%rdg+1mA)

10.0mA~99.0mA

0.1mA

±(2.5%rdg+5mA)

100mA~300mA

1mA

±(2.5%rdg+10mA)

0.30A~2.99A

0.01A

±(2.5%rdg+0.1A)

3.0A~9.9A

0.1 A

±(2.5%rdg+0.3A)

10.0A~20.0A

0.1 A

±(2.5%rdg+0.5A)

Clamp Jaw Size

65mmX32mm

Tester Dimension

285mm(L)X85mm(W)X56mm(T)

Tester Weight

2300g (include accessories)

Power Supply

6VCD (4 PCS of No.5 LR6 Alkaline dry batteries)

Single Measurement Time

0.5 second

LCD Screen

4 Digits LCD display, 47mm(L)X28.5mm(W)

Data Memory

99 Groups

Audible & Visible Alarm

“Du—du—du” alarm sound , press AL key to turn on/off

Alarm Threshold Setting Range

Resistance: 1~199Ω

Clamp Jaw Opening Size

32mm

Protection Level

Double insulation

Gear Shift

Automatically

RS232 Interface

Optional

Accessories

Tester: 1PCS; Test Ring: 1PCS; Tester Case: 1PCS
