Ac / dc currency transmitter din rail 0-50A input hall current transducer output 4-20ma current sens



Price: 45.00Dolla/Piece
Min quantity: 1 Piece
Quantity: 10000000 Piece
Deliver: In days
Area: China
Expiry: Long-term
Edit time: 2022-11-14 15:09
Hits: 1043

Company integrity file
more>New Products
JXK-10 Hall Sensor Current Sensor AC/DC 0-1000A AC Current Transducer Hall Effect Current Transmitte 4-20mA rs485 water tank level ultrasonic fuel sensor High temperature 4-20mA water pressure transmitter Oil Air Water Pressure Sensor LCD display Output 0-10V PT100 temperature thermal resistance transmitter sensor JXK-13 AC Current Transducer Open Loop 0-10A Current Transmitter Hall Sensor Current Sensor PT100 Temperature sensor used for 4-20ma temperature transmitter
Detail

Packaging & delivery

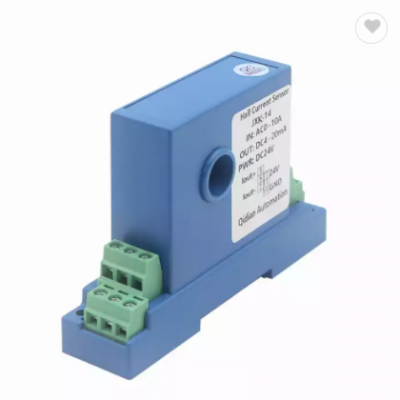

JXK14 AC/DC current transmitter adopts the Hall principle, which directly converts AC high-current signals from industrial sites
into standard analog signals, and the input and output signals have a linear relationship.
<1>. Working Principle: Open loop direct measurement
<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input
and no insertion loss.
<4>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply
monitoring,electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration, parameter customizable.

Model number

JXK-14

Power supply

DC12V, DC15V, DC24V,
AC220V, Customizable

Input signal

AC/ DC 0~150A

Output signal

4-20mA, 0-20mA, 0-5V, 0-10V, Customizable

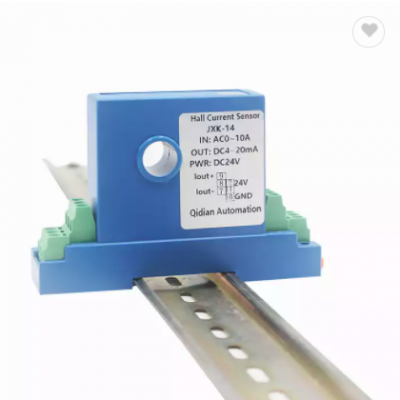

Installation

Standard rail +Plane screw fixation

Aperture available

4mm, 8mm, 12mm

Accuracy

0.5%F.S.

Respond time

<200ms

Linearity

0.5%F.S.

Temperature drift

≤500PPM/℃

Band width

DC~20KHz

Consumption of current

≤25mA

Isolation voltage resistance

2.5k/50Hz,1Min

Offset voltage

≤20mvV

Zero output

≤0.15mA

Di/dt follow

>50A/uS

Working ambient

-10℃~+70℃

Storage ambient

-25℃~+85℃

Product size

Wiring Digram

Selection
