ACSR/AAC/ABC cable making machine at factory supplier



Price: 25.59Dolla/Piece
Min quantity: 10 Piece
Quantity: 10000 Piece
Deliver: In days
Area: China
Expiry: Long-term
Edit time: 2022-11-25 09:27
Hits: 6495

Company integrity file
more>New Products
Triplex Service Drop Aluminum Conductor Aluminum Conductors AAC / ACSR AAAC--All Aluminum Alloy Conductor Source NYY/YVV 0.6/1kV wholesale cable china Power Cable Duplex to Quadruplex xlpe abc cable service drop wire 14 AWG THHN Solid Building Wire, 500ft Spool
Detail

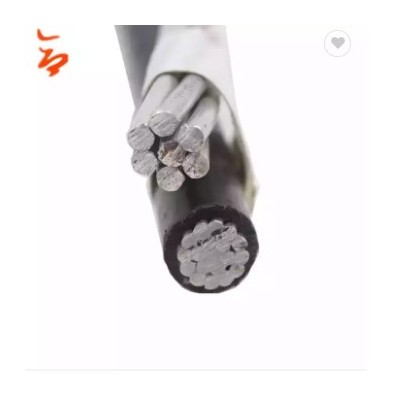

Low Voltage Overhead Aerial Bundled Cable

1. Application

    Primarily used for overhead service applications such as street lighting, outdoor lighting,and temporary service for construction.



2.Material
    ABC Service Drop main contain Phase conductor,Neutral Messenger,some have Street Lighting.
    With 1350 Aluminum, 6201,8000 series Aluminum-Alloy, Class A Steel wire,



    Insulated: XLPE/PE/PVC/HDPE/LLDPE.......
    Phase: All Aluminum Conductor (XLPE/PE/PVC Insulated)
    Neutral: All Aluminum Conducotr/All Aluminum Alloy Conductor(XLPE/PE/PVC Insulated)/Aluminum Conducotr Steel Reinforced
    Street Lighting: All Aluminum Conductor(XLPE/PE/PVC Insulated)



3.Product Superiority

    This kind of products of our company take refined aluminum and steel as raw materials, adopt advanced machine equipment and excellent processing technology to process and manufacture, so that this product has a good reputation.Compared with the same type of products, our company not only meets various standards and specifications, but also has a better price and customer service



4.Specification



Quadruplex Service Drop

Code word



AWG or kcmil

Bare neutral messenger

Phase conductor

Weight kg/km

Allowable ampacities



AAC

Rated strength

lbs

AAC

Insul Thick. mm


XLPE

PE



Number

Dia. mm


Number

Dia.mm





Clydesdate

3*4+1*4

7

1.96

881

1

5.19

1.14

299

100

80

Pinto

3*4+1*4

7

1.96

881

7

1.96

1.14

306

100

80

Mustang

3*2+1*2

7

2.47

1350

7

2.47

1.14

461

135

105

Criollo

3*1/0+1*1/0

7

3.12

1990

19

1.89

1.52

744

180

140

Percheron

3*2/0+1*2/0

7

3.5

2510

19

2.13

1.52

914

205

160

Triplex Service Drop

    AAAC Neutral Conductor

Code Word

AWG or Kcmil

Neutral  AAAC

Phase AAC

Insul. Thick. Mm

Minex

2*6 AWG+1*30.58

7/1.68

1/4.11

1.14

Hippa

2*6 AWG+1*30.58

7/1.68

7/1.56

1.14

Prawn

2*4 AWG+1*48.69

7/2.12

1/5.19

1.14

Bamacle

2*4 AWG+1*48.69

7/2.12

7/1.96

1.14

Shrimp

2*2 AWG+1*77.47

7/2.67

7/2.47

1.14

Gammarus

2*1/0 AWG+1*123.3

7/3.37

7/3.12

1.52

Leda

2*1/0 AWG+1*123.3

7/3.37

19/1.89

1.52



    ASCR Neutral Conductor



Code Word

AWG or Kcmil

Neutral  ACSR

Phase AAC

Insul. Thick. Mm

Paludina

2*6 AWG+1*6AWG

6+1 /1.68

1/4.11

1.14

Voluta

2*6 AWG+1*6AWG

6+1 /1.68

7/1.56

1.14

Whelk

2*4 AWG+1*4AWG

6+1 /2.12

1/5.19

1.14

Periwinkle

2*4 AWG+1*4AWG

6+1 /2.12

7/1.96

1.14

Conch

2*2 AWG+1*2AWG

6+1 /2.67

7/2.47

1.14

Neritina

2*1/0 AWG+1*1/0 AWG

6+1 /3.37

7/3.12

1.52

Cenia

2*1/0 AWG+1*1/0 AWG

6+1 /3.37

19/1.89

1.52



ACSR/AAC/ABC cable making machine at factory supplier
